Rubi Slab Trans Heavy Duty-N

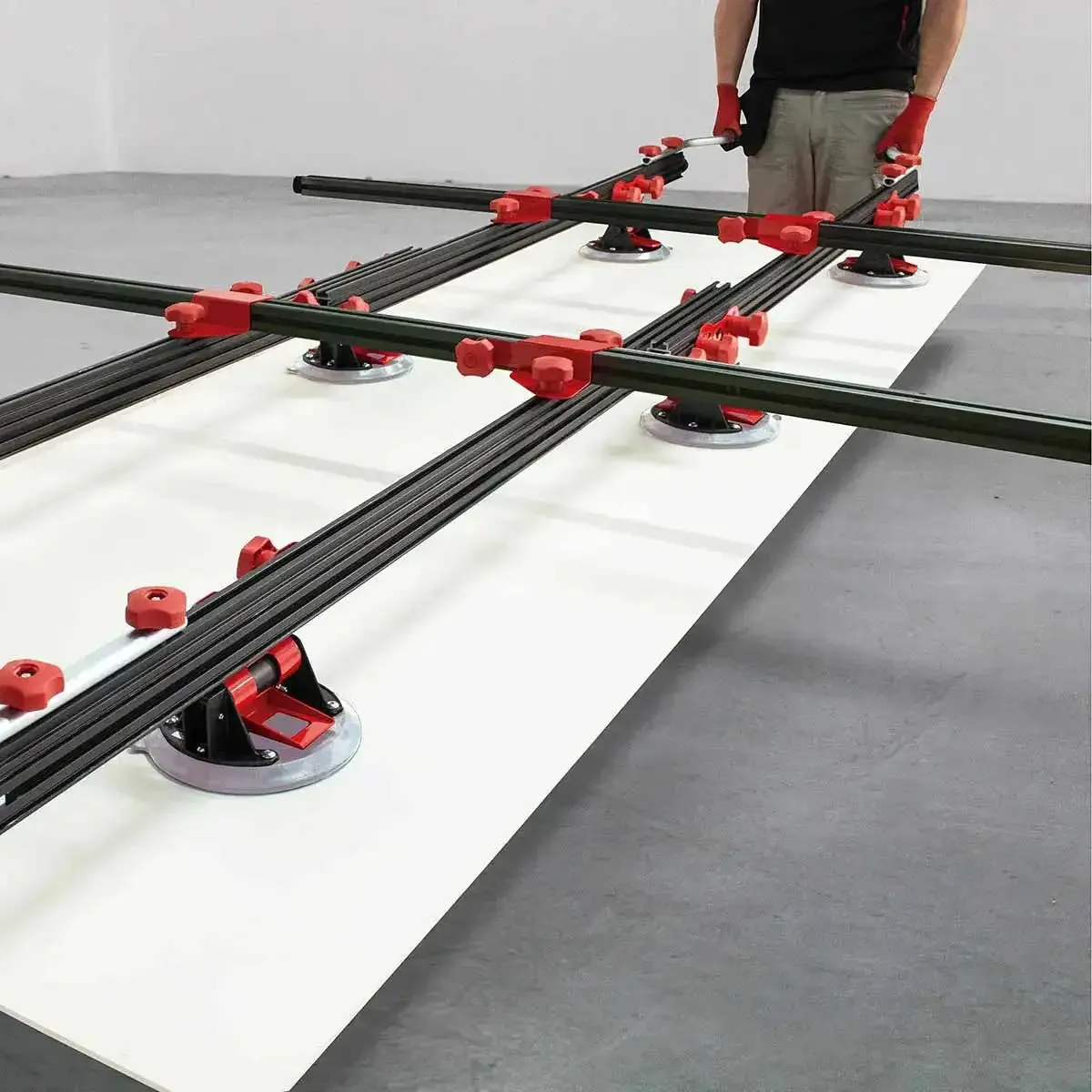

The Rubi Slab Trans Heavy Duty N conveyor is specially designed for handling large-format ceramic sheets and tiles up to 142" inches (11.8 feet) long and 63" inches (5.25' feet) wide. It can complement the Rubi Slim Cutter Plus, Rubi Slab Cutter, and the Rubi TC-125 cutting systems and is compatible with the Rub Slab Carriage.

Features

Designed mainly for handling ceramic sheets with thicknesses of 1/4" inch (6 mm) or more
For handling large-format ceramic sheets and tiles up to 142" inches (11.8' feet) long and 63" inches (5.25' feet) wide

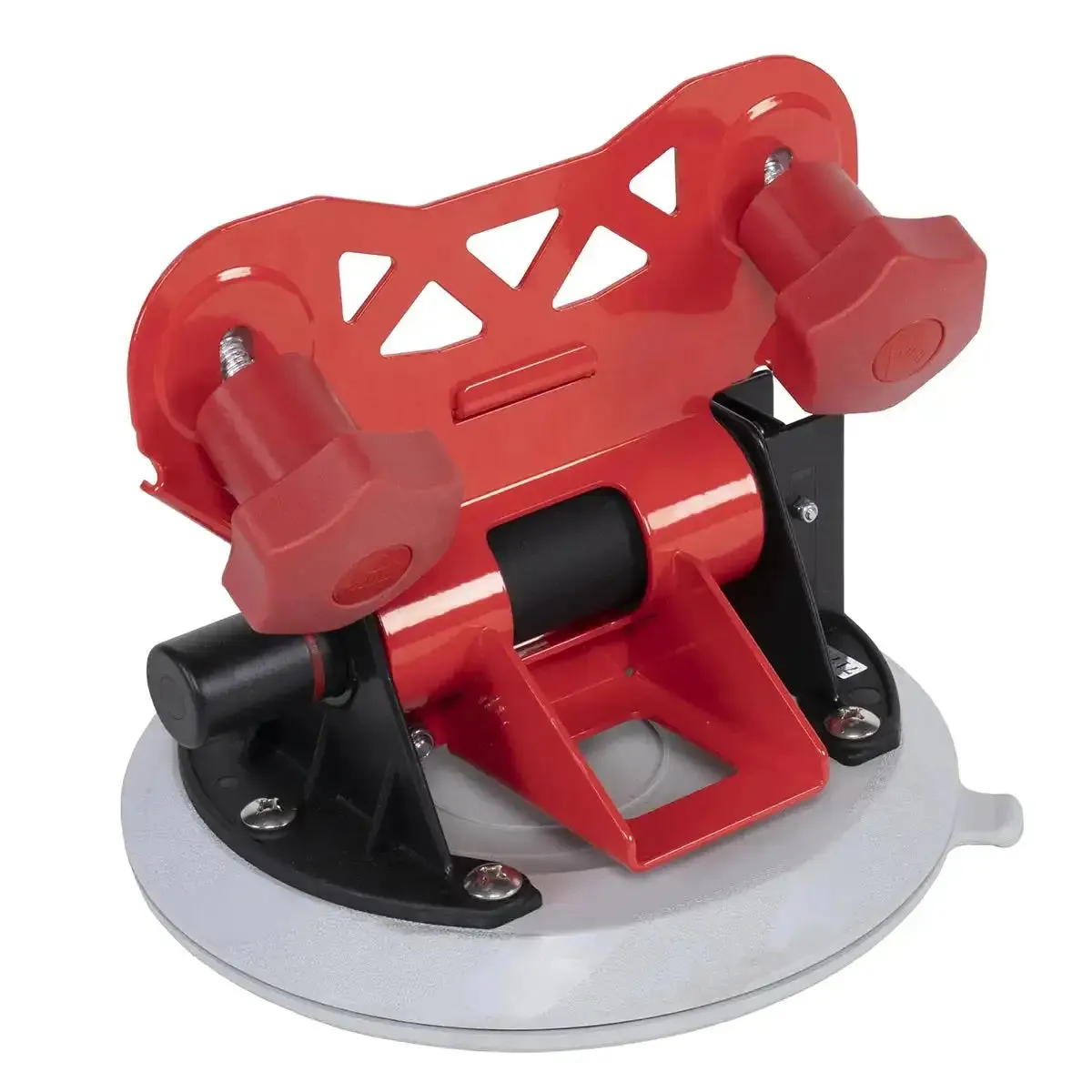

Thanks to the rubber-based vacuum suction cups, the installer can adjust the fixing points, ensuring the handling of the porcelain tiles without fear of the tile surface being marked.
For a correct fixation of the system, always check that the sheet's surface is clean of dust or other residues.

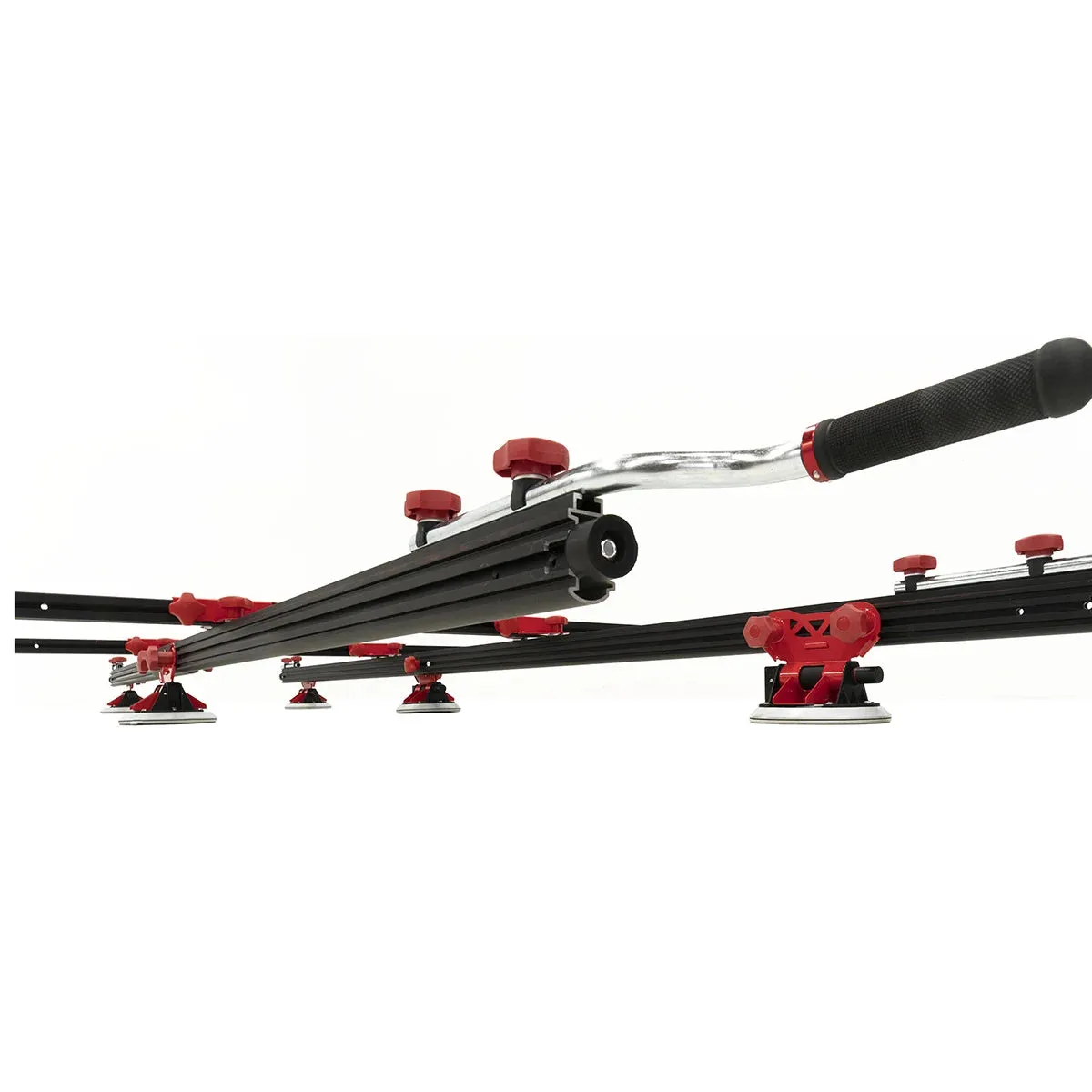

The set has 4 handles (2 per guide) that can be adjusted and positioned along the entire guide length, facilitating and adapting the Slab Trans HD-N to each circumstance and format.
When talking about such high weights, and always bearing in mind that the weight of the transporter itself must be added to the handling, staying within the maximum single-person load should be taken into account. Therefore, in some cases, 3 or 4 operators will be necessary to guarantee safe handling.
It comes in a practical transport bag equipped with wheels to facilitate both the handling of the equipment and its storage and protection
Weight capacity: 375 lb. (170 kg.)
***It is important to note that this load capacity is total, so it cannot be exceeded in any case

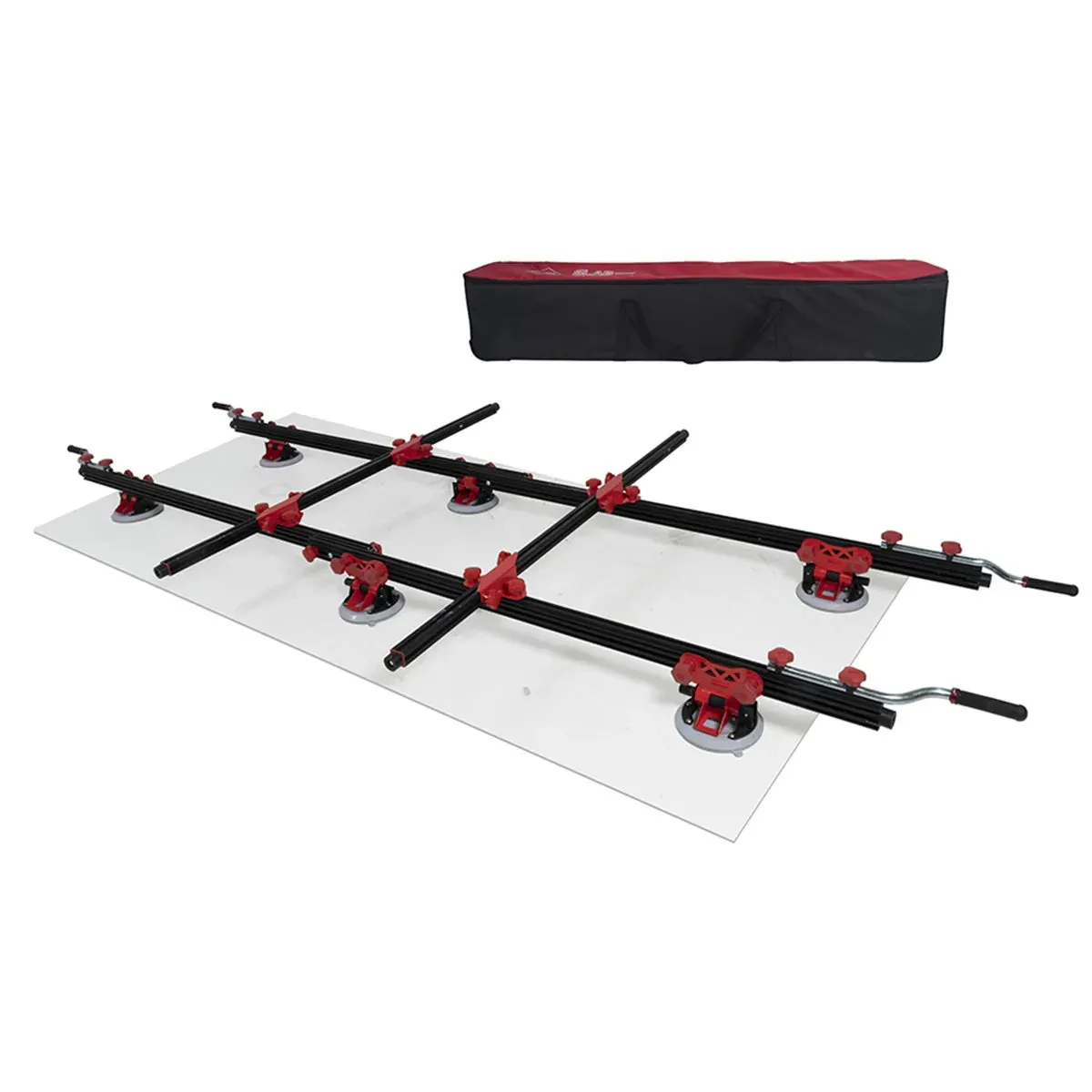

What's Included?

Set of two (2) reinforced, retractable, and adjustable extruded aluminum profiles
Two (2) perpendicular crossbars
Six (6) gray rubber-based vacuum suction cups
Four (4) handles (2 per guide)
One (1) practical transport bag
Operator's manual
